Our Services
OUR PURPOSE BUILT REPAIR FACILITY BASED IN BANGALORE OFFERS ELECTRICAL MOTOR AND GENERATOR REWINDING, REPAIR AND RECONDITIONING WORKS.
In House Activities
REPAIR, REWINDING, RECONDITIONING OF LT MOTORS, HT MOTORS, AC GENERATORS, DC MOTORS OF ANY MAKE AND TYPE

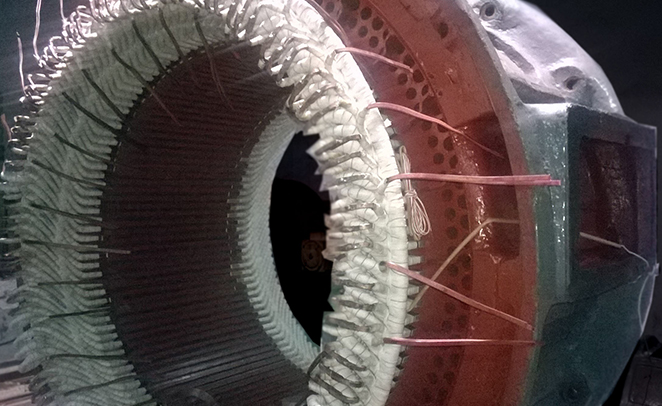

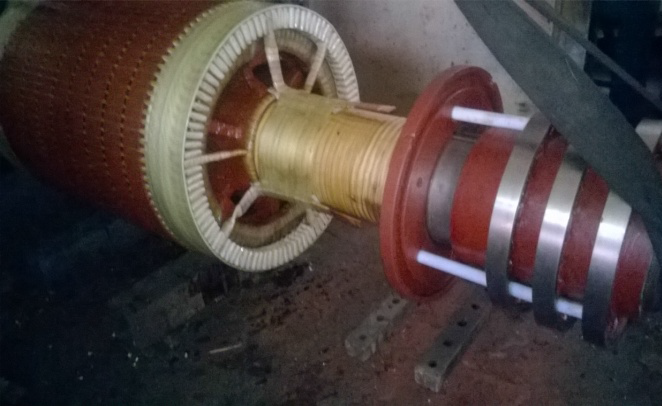

- Rewinds 3.3kV, 6.6kV, 11kV Squirrel cage and Slip Ring Induction motors up to 1500kW
- Rewinds 415V Squirrel cage and Slip Ring Induction motors up to 1500kW

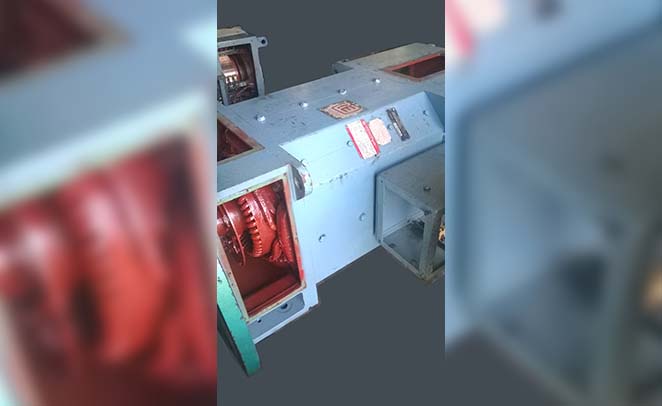

- Rewinds DC motors up to frame size 710 (1500kW@400 rpm)
- Rewinds Brushless/ slip ring Alternators up to 2 MW
- Squirrel cage rotor re dicasting / bar driving and reconditioning
- Rewinds Lifting Magnets with copper/ Aluminium coils.
- Repair and Refurbishment of commutator

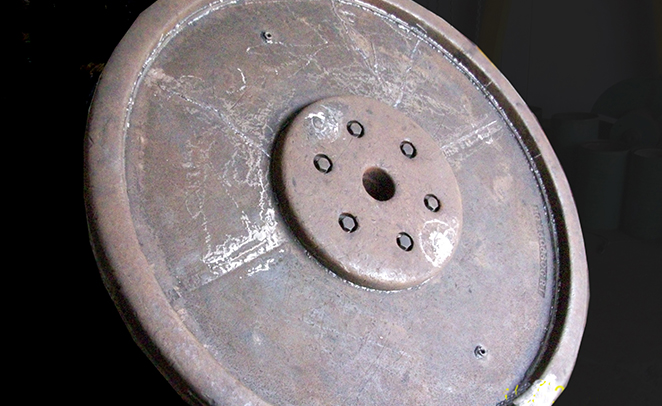

- Shaft replacement, End shell rework, Bearing Housing rework, stamping reconditioning and restacking etc.
- Complete health check up and overhauling services
- Refurbish cooling system for motors and generators: Air blowers, Heat exchangers and water coolers.
On-Site Services
- Supervising Commissioning of LT and HT motors.
- Supervising Commissioning of DC motors
- AC and DC motor health Check up and trouble shooting
- Overhauling of DC motors
- Overhauling of Alternators
- Overhauling of HT motors
- Overhauling of LT motors
Specification for Motor, Generator Rewinding and Repair
- Motor rewinds generally with insulation class F (155 Deg C) and class H insulation (180 Deg C) will be provided for specific requirements.
- Motor rewinds with Dual coated 200 Deg temperature class copper for all range of motors
- Low voltage stator and rotor impregnated with class H varnish
- Windings treated with VPI for Variable Frequency Drive motors and 3.3 kV, 6.6kV, 11kV motors for specific requirement.

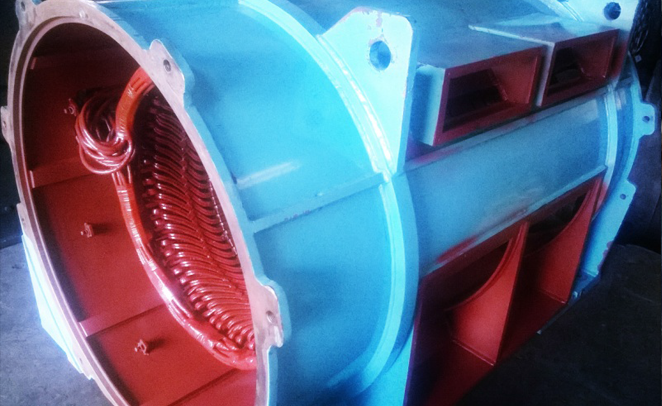

- Formed coils for 3.3kV, 6.6kV and 11kV motor stator and DC armature
- End termination with carefully selected cables for proper voltage and current levels.
- HT tinned copper sockets provided for cable termination.

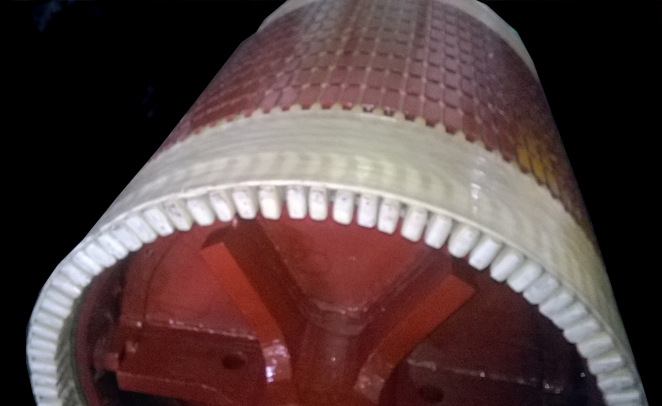

- Rewound rotors/DC armatures are resin glass banded at a specific tension and as per calculated layers.

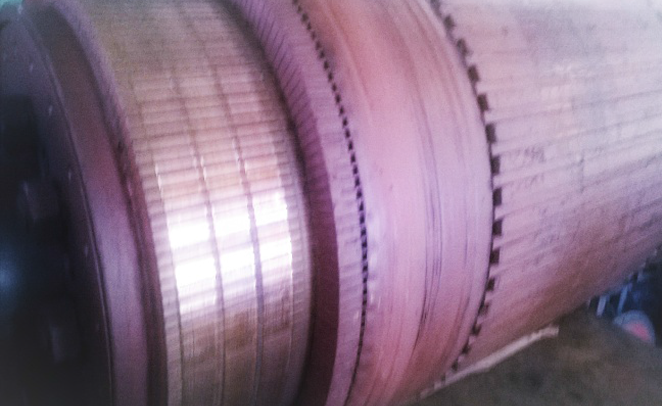

- Commutator turning, Mica undercutting and beveling for DC armature
- Rotors are dynamically balanced.
- Bearings pre heated with Bearing Heaters before mounting
- Recommended grade of genuine brushes for DC motors, Slip Ring motors and Alternators.
- Broken/damaged rotor shafts replaced with specific grade of steel with due process.
- Worn out/soared shafts filled with metal spray/coating and Bearing housing reconditioning.
Segments where the services are being offered:
Sugar, Steel, Tube manufacturing, Paper, Cement, Tyre building, Printing, Machine tool Industries etc.
Maximum rating, serviced on- site:
DC motor: 1500kW @ 50 RPM
AC Generator: 30MW
HT Motor: 1750kW
LT Motor: 1250 kW
MAXIMUM RATING, REWOUND/REPAIRED IN HOUSE:
DC Motor: 1297kW @ 400 rpm, Frame: 710
HT motor: 1120kW @ 740 rpm, 11kV, Frame: 630
LT motor: 1250kW @740 rpm, 415V, Frame: 630
AC Generator: 2MW @1500 rpm
Lifting Magnet: 21kW and 7kW both with copper and aluminium strips
